HG VNIR Pro
Next-generation
high-speed hyperspectral camera
for industrial inspection
An industrial hyperspectral camera that captures invisible material differences and defects with pixel-level spectral information.
HG VNIR Pro

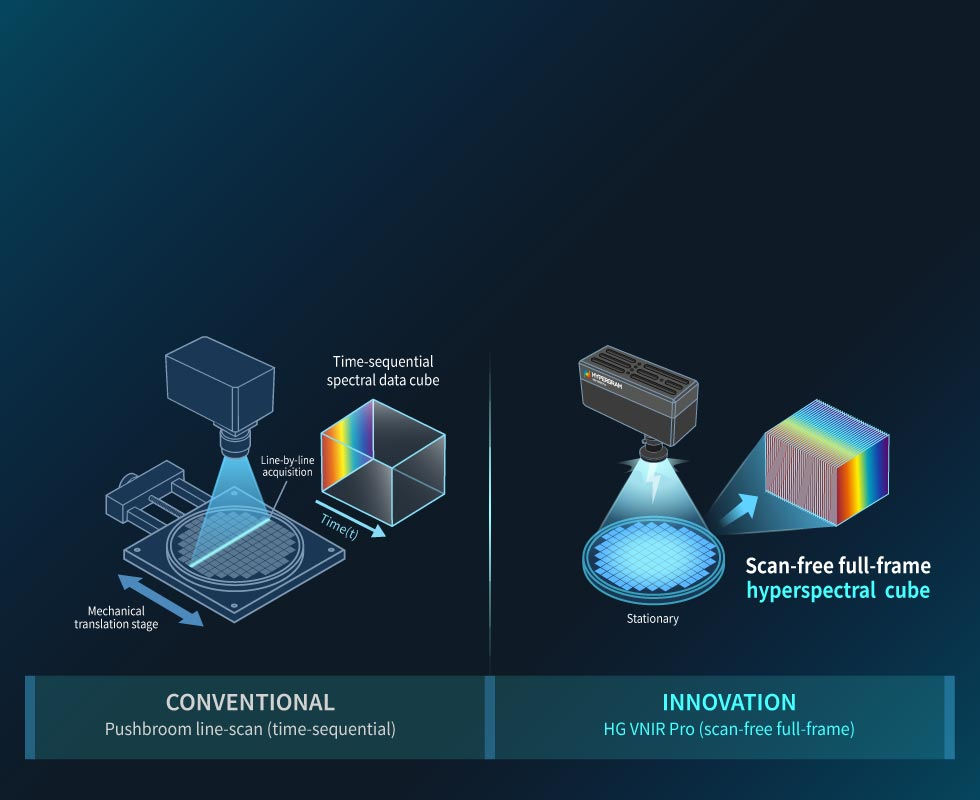

Beyond line scanning,
intuitive full-frame inspection
-
Instant high-speed full-frame hyperspectral imaging
-
Capture full-frame hyperspectral images at video speed without line scanning, reducing inspection time
Precisely detect invisible differences with
71 spectral channels
-
Instant acquisition of 71-channel hyperspectral images across the 400-1100 nm visible and near-infrared spectrum
-
Supports 10 nm spectral resolution for precise pixel-level analysis of color, material, contamination, and coating variations
High-speed spectral acquisition optimized for real-time inspection
-
Captures hyperspectral data at up to 1.7 cubes per second, enabling instant AI-powered industrial inspection
High spatial resolution
for detecting even the smallest defects
-
Spatial resolution supports both High-Resolution Mode (1636 × 2448, 4 MP) and High-Speed Mode (818 × 1224, 1 MP)
-
Visualizes invisible defects and material differences that are difficult to distinguish with RGB or human eye
More precise inspection
without product damage,
Non-destructive hyperspectral inspection
-
Non-destructive spatially resolved inspection and process quality monitoring
-
Supports camera control and data integration for inline inspection systems
Compact design for flexible deployment across industrial environments
-
Dimensions / Weight: 270 × 95 × 86 mm, 3.5 kg compact industrial form factor
-
USB-powered for portability, with expandable support for lighting, waterproof caps, and other accessories
-
Designed for rapid deployment across diverse industrial environments
HG VNIR Pro - Key specifications
-
Spectral range: 400-1100 nm
-
Number of channels: 71 channels
-
Spectral resolution: 10 nm
-
Spatial resolution: high-precision 1636 x 2448, 4 Mpx / high-speed 818 x 1224, 1 Mpx
-
Frame rate: up to 1.7 fps
-
Interface: two USB-C 3.1 ports supporting PD and Super Speed
-
Lens: standard C-mount
-
Platform: 64-bit Windows PC with NVIDIA RTX 5090 or higher GPU
-
Size/weight: 270 x 95 x 86 mm / 3.5 kg
